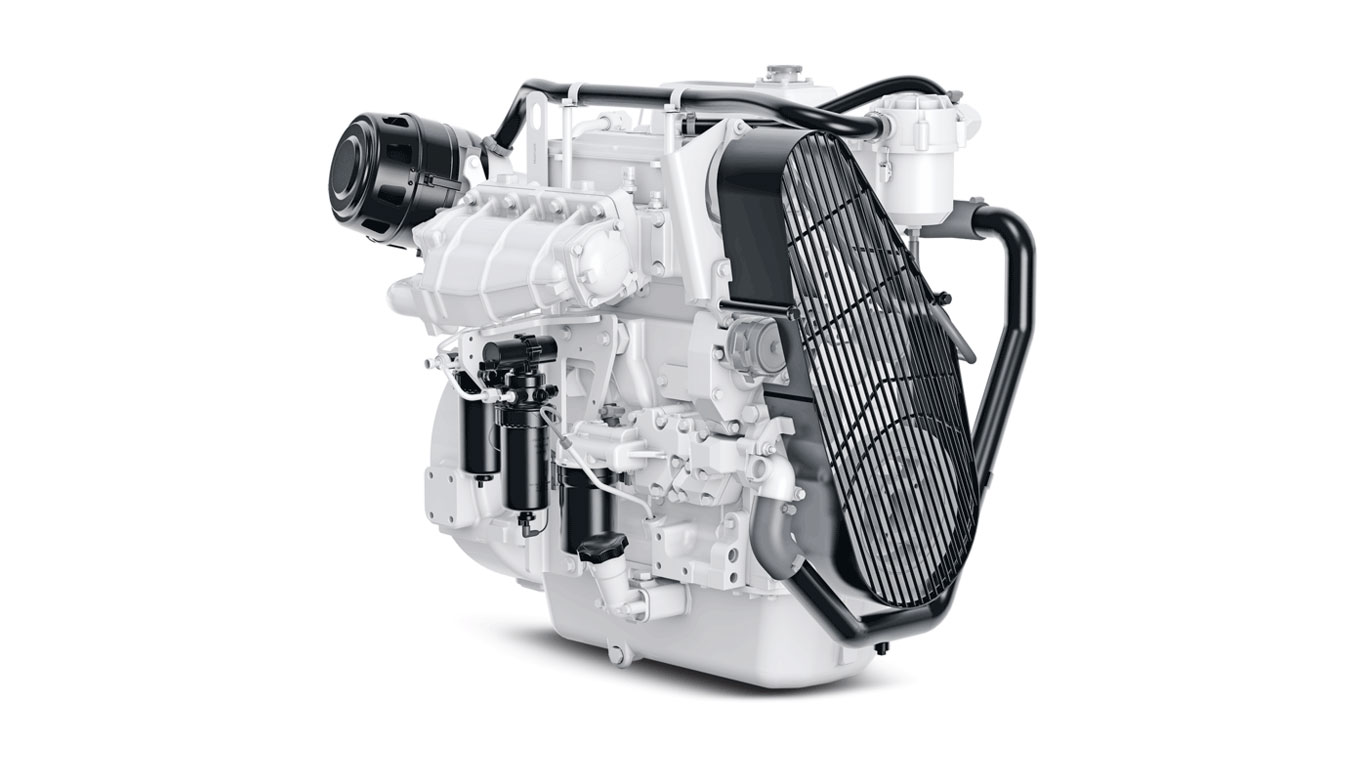

6068AFM85 Marine Propulsion Engine

<ul>
<li>PowerTech™ PSS</li>
<li>93-129 kW (125-173 hp) @ 2200-2400 rpm</li>
<li>Continuous, Heavy Duty, Intermittent</li>
</ul>


4045CI550 4.5L Industrial Diesel Engine

<ul>
<li>PowerTech™ EWX</li>
<li>Standby: 55 kW (74 hp) @ 1800 rpm</li>
<li>Prime: 50 kW (68 hp) @ 1800 rpm</li>
</ul>


4045TFG03 4.5L Generator Drive Engine

<ul>
<li>PowerTech™ E</li>
<li>Standby: 345 kW (462 hp)  @ 1800 rpm</li>
<li>Emergency stationary applications only</li>
</ul>


6090HFG86 9.0L Generator Drive Engine

<ul>
<li>6.8L PowerTech™</li>
<li>117-166 kW (173-223 hp)</li>
</ul>


6068AFM85 Marine Generator Drive Engine

<ul>
<li>PowerTech™ Plus</li>
<li>Standby: 345-460 kW (462-616 hp) @ 1800 rpm</li>
<li>Prime: 311-419 kW (417-561 hp) @ 1800 rpm</li>
</ul>


6135HF485 13.5L Generator Drive Engine

<ul>
<li>9.0L PowerTech™</li>
<li>280 kW (375 hp)</li>
</ul>


6090HF485 Variable Speed Industrial Auxiliary Engine

Generator Drive and Constant-Speed Auxiliary Engines

<ul>
<li>9.0L PowerTech™</li>
<li>238 kW (325 hp) @ 1800 rpm</li>
</ul>


6090HFM85 Constant Speed Industrial Auxiliary Engine

<ul>
<li>4.5L PowerTech™</li>
<li>117 kW (157 hp)</li>
</ul>


4045HF285 Constant Speed Industrial Auxiliary Engine

<ul>
<li>13.5L PowerTech™</li>
<li>417 kW (559 hp) @ 1800 rpm</li>
</ul>


6135HFM85 Constant Speed Industrial Auxiliary Engine

John Deere

<ul>
<li>1,600-gallon (6,057 L) tank</li>
<li>Up to 132-foot (40.23 m) boom</li>
<li>375 hp, 9.0 L engine</li>
<li>35 mph (56.3 km/h) transport speed</li>
</ul>


616R Sprayer

<ul>
<li>Pull-type unit with drawbar</li>
<li>Adjustable discharge chute</li>
<li>Reversible, hydraulic feed roll</li>
</ul>


WC12 Series Wood Chippers

<ul>
<li>Adjustable blade scrapers increase productivity</li>
<li>Notched or smooth disk blades available in two sizes</li>
<li>Durable Clevis hitch</li>
<li>Oil bath tapered roller bearings minimize maintenance</li>
</ul>


DH52 Series Offset Disks

<ul>
<li>Net Power: 200 kW (268 hp) at 1,900 rpm</li>
<li>Pump Capacities: 210 cm<sup>3</sup> (13 cu. in.) / 180 cm<sup>3</sup> (11 cu. in.)</li>
<li>Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 11.0 m (36.1 ft.)</li>
</ul>


1470G Wheeled Harvester

<ul>
<li>Forged-steel bale spear tines</li>
<li>Hitch provides a super-quick connection</li>
<li>Tubular frame is built strong&nbsp;</li>
</ul>


HS20 Series 3-Point Hitch Bale Spears

<div>
<ul>
<li>Cover more acres per day with less stress by extending AutoTrac into post emerge in-field operations such as spraying and harvest.</li>
<li>Protect crop yield when applying crop protectants and nutrients in stand crop by making sure that the sprayer or tractor stays off of the crop rows.</li>
<li>Focus on quality of the job being performed and ensure that the machine is operating as it should rather than being concerned about steering the machine in standing crop.</li>
</ul>
</div>


AutoTrac™ RowSense™ AutoTrac™ RowSense™ (Available on Combines, Sprayers and Tractors)

<ul>
<li>15 ft. cutting width</li>
<li>540 or 1000 PTO RPM</li>
<li>Front and rear suspension options</li>
<li>Inward or outward rotation</li>
</ul>


FC15M Flex Wing Rotary Cutter

<ul>
<li>Net Power: 131 kW (178 hp) at 1,900 rpm</li>
<li>Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)</li>
<li>Tractive Force: 150 kN (33,721 lbf) with 24.5 tires/ 160 kN (35,969 lbf.) with 26.5 tires.</li>
<li>Load Rating: 11 000 kg (24,251 lb.)</li>
</ul>


1010G Forwarder

<ul>
<li>200 or 300 cu. ft. (5.6 or 8.5 m3)dry box </li>
<li>375 hp, 9.0 L engine</li>
<li>25 mph (40.2 km/h) field speed, 35 mph (56.3 km/h) transport</li>
<li>Integrated intelligence with StarFire™ receiver, JDLink™ connection, and more</li>
<li>Three cab and visibility packages to customize your sprayer</li>
</ul>


600R Dry Spinner Spreader

<ul>
<li>A proven design that drives the cutting unit with electric reel motors</li>
<li>102 potential leak points eliminated in the reel circuit</li>
<li>Reduced sound levels and fuel consumption @ 2250 RPM</li>
<li>Greatly reduce triplex ring with exclusive offset cutting units</li>
</ul>


2550 E-Cut™ Hybrid Diesel Triplex Mower

Marine Engines

<ul>
<li>6.8L PowerTech™</li>
<li>187 kW (251 hp)</li>
</ul>


6068HF485 Variable Speed Industrial Auxiliary Engine

<ul>
<li>9.0L PowerTech™</li>
<li>242 kW (325 hp) @ 2000 rpm</li>
</ul>


6090HFM85 Variable Speed Industrial Auxiliary Engine

<ul>
<li>13.5L PowerTech™</li>
<li>448 kW (600 hp)</li>
</ul>


6135HF485 Variable Speed Industrial Auxiliary Engine

<div>
       <ul>
        <li>Cross flow head design that provides excellent breathing from a lower cost two-valve cylinder head</li>
       </ul>
      </div>

2-valve cylinder head

<div>
       <ul>
        <li>The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection.</li>
       </ul>
      </div>

High-pressure common-rail (HPCR) and engine control unit (ECU)

<div>
       <ul>
        <li>Fixed geometry turbochargers are sized for a specific power range and optimized to provide excellent performance across the entire torque curve. They are also designed to maximize fuel economy between the engine's rated speed and peak torque.</li>
       </ul>
      </div>

Fixed geometry turbocharger

<div>
       <ul>
        <li>In turbocharged engines, the air is pre-compressed. Due to the higher pressure, more air is supplied into the combustion chamber allowing a corresponding increase in fuel injection which results in greater engine output.</li>
       </ul>
      </div>

Turbocharged

<div>
       <ul>
        <li>The HPCR fuel system and engine control unit (ECU) allow for multiple fuel injections. The number of fuel injections, based on speed and load, help contribute to lower combustion temperatures, which reduce the formation of NOx and particulates. The multiple injection strategy also provides an added benefit of noise reduction.</li>
       </ul>
      </div>

Multiple injection strategy

<div>
       <ul>
        <li>PowerTech E engines offer electronically controlled fuel systems with improved cold-start performance, precise engine speed control, torque curve shaping and more. Because these systems have less need for redundant sensors, add-on electronic governors, and shutdown devices - they result in a lower total installed cost.</li>
       </ul>
      </div>

John Deere electronic engine controls

<div>
       <ul>
        <li>Power bulge feature</li>
        <li>Increased low-speed torque</li>
        <li>Higher-peak torque ratings</li>
        <li>Faster torque rise</li>
        <li>Lower-rated speeds available for reduced noise and improved fuel economy</li>
       </ul>
      </div>

Engine performance

<div>
       <ul>
        <li>Self-adjusting poly-vee fan drive</li>
        <li>Forged-steel connecting rods</li>
        <li>Replaceable wet-type cylinder liners</li>
        <li>Either-side service</li>
        <li>Standard gear auxiliary drive</li>
       </ul>
      </div>

Specifications
Model	4045TF285
Number of cylinders	4
Displacement – L (cu in)	4.5 (275)
Bore and Stroke – mm (in)	106 x 127 (4.17 x 5.0)
Engine Type	In-line, 4-cycle
Aspiration	Turbocharged
Length – mm (in) to rear of block	867 (34.1)
Width – mm (in)	680 (26.8)
Height – mm (in)	1055 (41.5)
Weight, dry – kg (lb)	491 (1082)
Rated speed	78 kW @ 1800 rpm
Engine power - Standby kW (hp)	78 (105)
Engine power - Prime kW (hp)	71 (95)
Generator efficiency %	88-92
Rated fan power	4.7 (6.3)
Power factor	0.8
Calculated generator set output - Standby kVa (kWe)	81-84 (65-67)
Calculated generator set output - Prime kVa (kWe)	73-77 (59-61)
