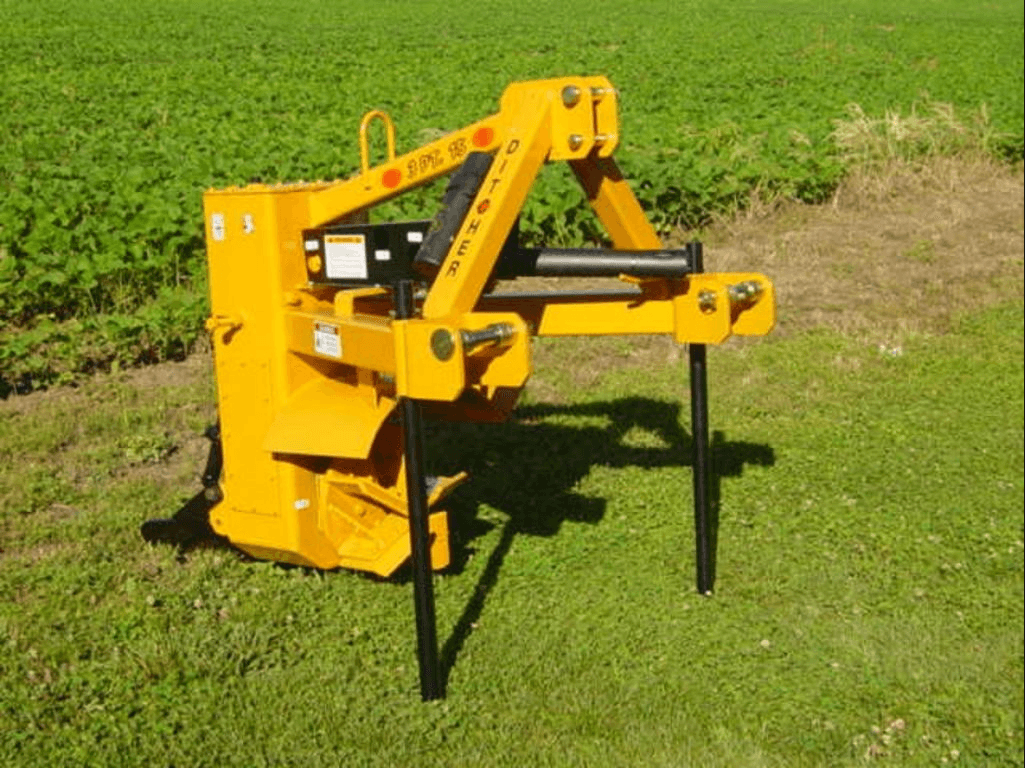

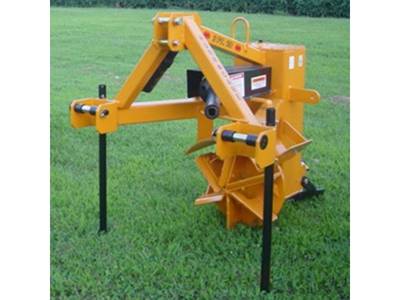

3-PT 15 3-Point Ditcher
The model 3-PT 15 3-Point ditcher is designed to provide an economical way to make surface drainage ditches using your own farm tractor. Like all Hurricane 3-Point models, the 3-PT 15 is equipped with parking stands for easy hook-up and disconnection. It can be used with Cat II or III quick hitch by moving the bushings to the desired location.
The rear shoe (dragplate) gives the machine stability, helps prevent gouging, and helps form the ditch in loose or wet conditions. A heavy-duty ratchet jack is standard for adjustment of the dragplate.
The gearbox components are easily accessible by removing the top or side cover plates. The gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain; all enclosed and running in an oil bath. The external idler adjustment is used to maintain proper chain tension.
Soil is thrown out the left side of the ditcher and may be distributed over a 50 foot area; rocks and other debris may go farther.
| Specifications | |
|---|---|
| Minimum Engine Power | 50HP to 140HP |
| PTO Type | 55 series PRO with sheer bolts which overload at the tractor end |
| Gearbox | 5/16" material with double 80 roller chain, oil bath, external idler tension adjustment |
| Hitch/Type | Cat II or III quick hitch adaptable |
| Wheels | 15" diameter with 5 paddles |
| Weight | Approximately 800 lbs |
