2019 Hurricane Ditcher 3-PT 42 Base

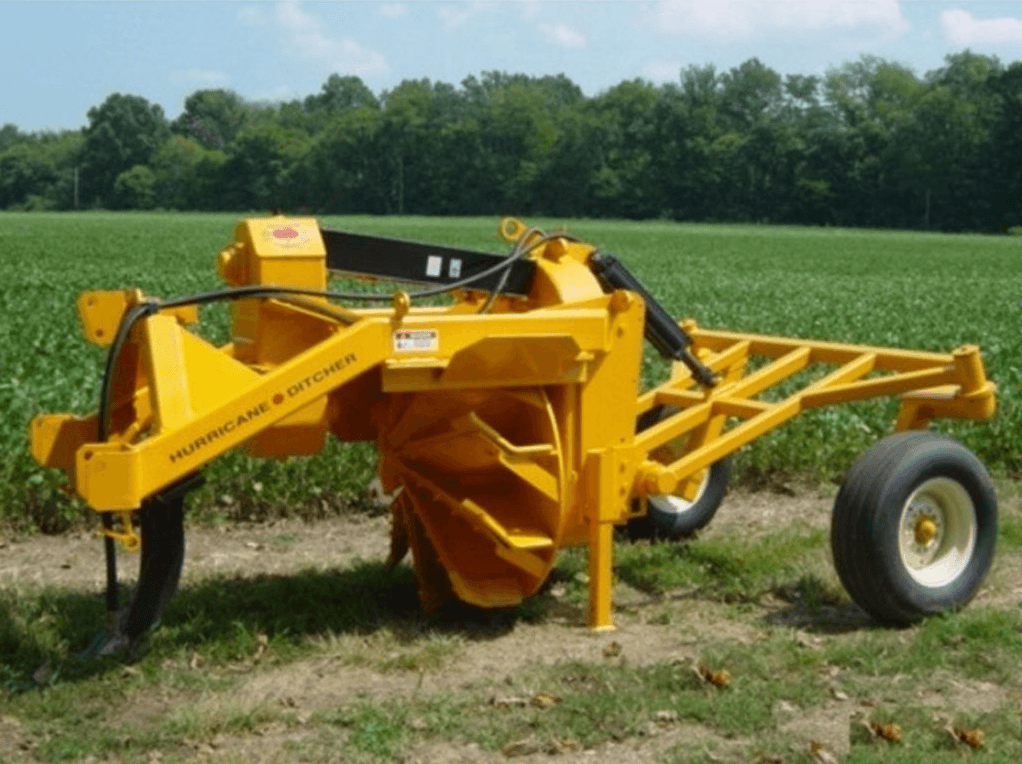

2019 Hurricane Ditcher 3-PT 42
The 3-PT 42 is our largest 3-Point ditcher. It is designed to work in extremely trashy conditions such as sod or stalks. The standard ripper tooth is designed to loosen debris and/or hard, dry soil for smoother machine operation.
The 42″ 9-paddle impeller wheel (digging wheel) consists of 9 heat treated cutting edges and 9 hard-surfaced paddles that are designed to be resurfaced as they wear. It does have shear bolts should a large immovable object be struck.
The gearbox components are easily accessible by removing the rear or side access cover plates. The gearboxes consist of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain; all enclosed and running in an oil bath. The external idler adjustments are used to maintain proper chain tension.
| Specifications | |
|---|---|
| PTO Type | 55 series 1000 RPM 1-3/4-20 spline with shear bolts which overload at the tractor end |
| Gearbox | Rear: 1/2" material with double 80 roller chain, oil bath, external idler tension adjustment; Front: 5/16" material with double 80 roller chain, oil bath, external idler tension adjustment |
| Hitch/Type | Cat II or III quick hitch adaptable |
| Wheels | 42" diameter with 9 heat treated cutting edges and 9 hard-surfaced paddles |
| Weight | Approx: 3,700 lbs. |
| Features | HP required: 125 HP to 225 HP |
