2022 Hurricane Ditcher 3-PT 26 Base
Make:
Hurricane Ditcher
Model:
3-PT 26
Year:
2022
2022 Hurricane Ditcher 3-PT 26

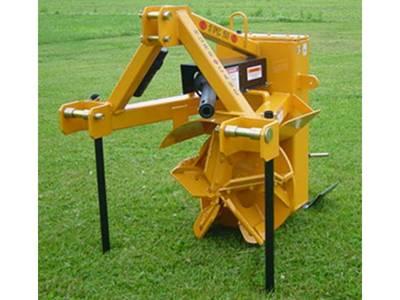

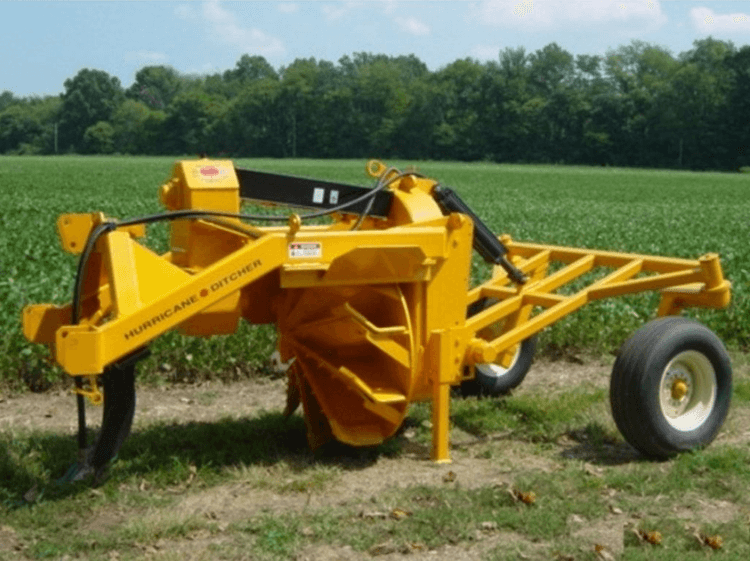

The model 3-PT 26 3-Point ditcher is designed to provide an economical way to make surface drainage ditches using your own farm tractor. Like all Hurricane 3-Point models, the 3-PT 26 is equipped with parking stands for easy hook-up and disconnection. It can be used with Cat II or III quick hitch by moving the bushings to the desired location.
Features may include:
- Operates with 70-140 HP tractor
- Equipped with jack stand for easy hook-up and disconnection
- Contains 2 shear bolts in the PTO should an immovable object be stuck
- Contains a shear bolt in the wheel to protect it against damage when larger objects are hit
- Dragplate gives machine stability and prevents gouging; includes heavy-duty ratchet jack
- Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
Specifications | |
---|---|
Engine Power | Recommended HP Speed: 70 HP to 140 HP |
PTO Power, Rated Engine Speed | Power Take-Off: Series 55, 1000 RPM with shear bolt protection |
Gearbox | 5/16" material with double 80 roller chain, oil bath, external idler tension adjustment |
Hitch/Type | Cat II or III quick hitch |
Impeller Diameter | Wheel: 26" 5-paddle impeller with shear bolt |
Depth, Maximum | Of cut: Up to 10" in a single pass; up to 26" in multiple passes |
Cutting Width | 26" at 13" deep |
Weight, As Shipped | Approximate: 1,000-1,250 lbs. |
Features | Rear Shoe (dragplate): Includes heavy-duty ratchet jack |
