Emissions Brochure

<div>

       <ul>
        <li>John Deere has billions of hours of field experience with off-highway diesel engine technologies and launched many of its engines ahead of EPA and EU deadlines, and is ready to meet Stage V emissions regulations using our proven diesel particulate filter (DPF) solutions. In most cases, OEM customers currently using a John Deere engine with a diesel particulate filter (DPF) won’t have to re-engineer machine design to meet the requirements of Stage V regulations. Our engineers continue to employ a global network of technical resources and the latest technology to lower emissions while improving performance and fluid efficiency.</li>
       </ul>
      </div>

Stage V.

<div>

       <ul>
        <li>Air is first drawn into the low-pressure turbocharger and compressed to a higher pressure. The compressed air is then drawn into the high-pressure turbocharger, where the air is further compressed. The high-pressure air is then routed through a charge air cooler and into the engine's intake manifold. By splitting the work between two turbochargers, both can operate at peak efficiency and at slower rotating speeds — lowering stress on turbocharger components and improving reliability. Series turbocharging delivers more boost pressure than single turbocharger configurations, which results in higher power density, improved low-speed torque, and improved high altitude operation.</li>
       </ul>
      </div>

Series turbocharger

<div>

       <ul>
        <li>These engines utilize a catalyzed exhaust filter that contains a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF). The DOC reacts with exhaust gases to reduce carbon monoxide, hydrocarbons, and some particulate matter (PM). The downstream DPF traps and holds the remaining PM. Trapped particles are oxidized within the DPF through a continuous cleaning process called passive regeneration. Passive regeneration occurs during normal operating conditions when heat from the exhaust stream, and catalysts within the exhaust filter, trigger the oxidation of the trapped PM. If passive regeneration cannot be achieved due to low temperature, load, or speed, then PM is removed using active regeneration — an automatic cleaning process controlled by the exhaust temperature management system.</li>
       </ul>
      </div>

Exhaust filters

<div>

       <ul>
        <li>EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing Nox.</li>
       </ul>
      </div>

Cooled exhaust gas recirculation (EGR)

<div>

       <ul>
        <li>John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF) to meet Stage V emission standards. A chemical reaction in the SCR catalyst converts urea and NOx emissions into nitrogen and water vapor.</li>
       </ul>
      </div>

Selective catalytic reduction (SCR)

<div>

       <ul>
        <li>The HPCR fuel system provides variable common-rail pressure and high injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.</li>
       </ul>
      </div>

High-pressure common-rail (HPCR)

<div>

       <ul>
        <li>This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.</li>
       </ul>
      </div>

Air-to-air aftercooled

<div>

       <ul>
        <li>The 4-valve cylinder head provides excellent airflow resulting in excellent low-speed torque and transient response.</li>
       </ul>
      </div>

4-valve cylinder head

<div>

       <ul>
        <li>Lower installed cost</li>
        <li>Engine mounting strategy consistent with previous engine models</li>
       </ul>
      </div>

Compact size

<div>

       <ul>
        <li>Faster engine control unit (ECU) manages both the engine and the exhaust filter</li>
        <li>Premium software integrates with equipment or vehicles to reduce engineering and installation costs</li>
       </ul>
      </div>

John Deere electronic engine controls

<div>
       <ul>
        <li>Replaceable (wet) cylinder liners</li>
        <li>Single-piece steel piston with oil-cooling gallery</li>
        <li>Full flow engine-mounted oil cooler</li>
        <li>Up to 500-hour oil change</li>
       </ul>
      </div>

Big-engine durability

<div>
       <ul>
        <li>Engine-mounted fuel filter</li>
        <li>Gear-driven auxiliary drives</li>
        <li>Self-adjusting poly-vee fan drive</li>
        <li>Low-pressure fuel system with electrical transfer pump and "auto-prime" feature</li>
        <li>Optional rear PTO</li>
       </ul>
      </div>

Specifications
CARB
EPA Final Tier 4
EU Stage V
Model	6136CG550
Number of cylinders	6
Displacement-- L (cu in)	13.55 (827)
Bore and Stroke-- mm (in)	132 x 165 (5.2 x 6.5)
Compression Ratio	15.9:1
Engine Type	In-line, 6-cycle
Aspiration	Turbocharged
Length - mm (in)	1498 (58)* *Engine length without fan drive
Width-- mm (in)	890 (35)
Height-- mm (in)	1367 (54)
Weight, dry - kg (lb)	1521 (3353)
Rated power	391-510 kW (525-684 hp) @ 2100 rpm
Peak power	421-513 (565-688) @ 1700-1900 rpm
Application rating	Continuous, Heavy Duty, Intermittent
Peak torque	2495-3050 nM (1840-2250 lb-ft) @ 1550 rpm
Power bulge	up to 7%
Torque rise	up to 40%

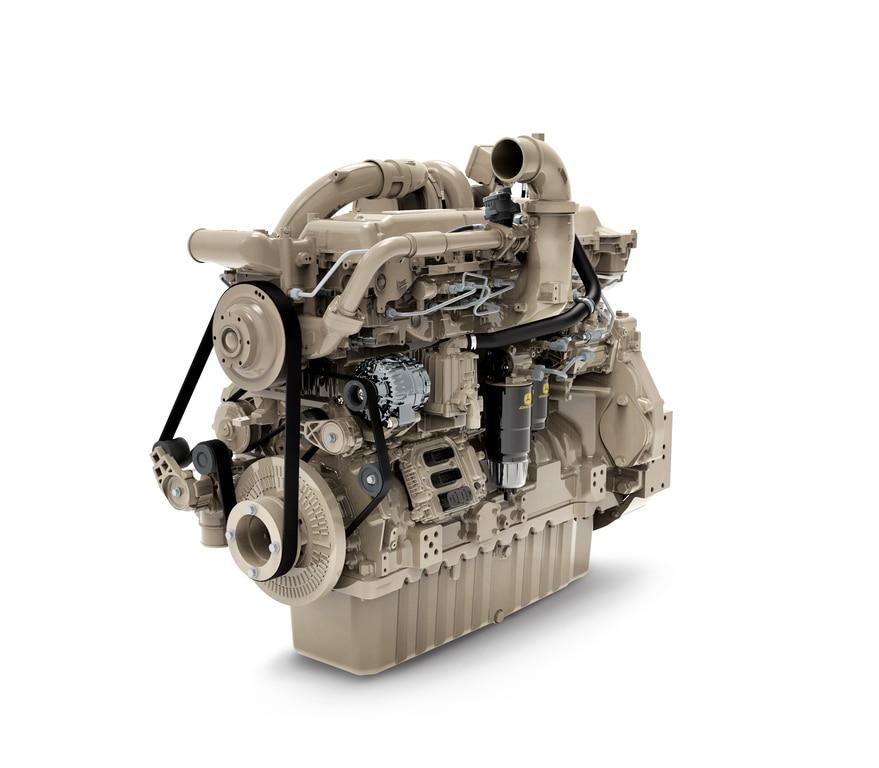

6136CG550 13.6L Generator Drive Engine

Stage V.

Series turbocharger

Exhaust filters

Cooled exhaust gas recirculation (EGR)

Selective catalytic reduction (SCR)

High-pressure common-rail (HPCR)

Air-to-air aftercooled

4-valve cylinder head

Compact size

John Deere electronic engine controls

Big-engine durability

Additional features

Similar Products

4045TFG03 4.5L Generator Drive Engine

3029HG530 2.9L Generator Drive Engine

6090CG550 9.0L Generator Drive Engine

6068CG550 6.8L Generator Drive Engine

6090HFG06 9.0L Generator Drive Engine,

JD14X (6136CG440) Generator Drive Engine

6068HFG06 6.8L Generator Drive Engine

6068HFG05 6.8L Generator Drive Engine

6136CG550 13.6L Generator Drive Engine

Stage V.

Series turbocharger

Exhaust filters

Cooled exhaust gas recirculation (EGR)

Selective catalytic reduction (SCR)

High-pressure common-rail (HPCR)

Air-to-air aftercooled

4-valve cylinder head

Compact size

John Deere electronic engine controls

Big-engine durability

Additional features

Similar Products

4045TFG03 4.5L Generator Drive Engine

3029HG530 2.9L Generator Drive Engine

6090CG550 9.0L Generator Drive Engine

6068CG550 6.8L Generator Drive Engine

​6090HFG06 9.0L Generator Drive Engine,

JD14X (6136CG440) Generator Drive Engine

6068HFG06 6.8L Generator Drive Engine

6068HFG05 6.8L Generator Drive Engine

6090HFG06 9.0L Generator Drive Engine,
