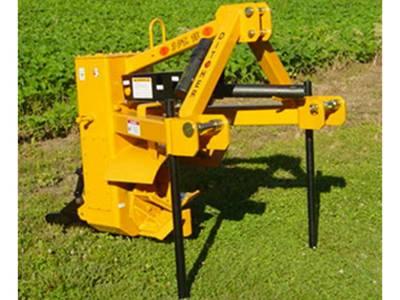

2022 Hurricane Ditcher 3-PT 15 Base
Make:
Hurricane Ditcher
Model:
3-PT 15
Year:
2022
In order to fulfill a need in agriculture, the 3-PT 15 was developed in 1992 as an efficient and affordable machine used to make surface drainage ditches using a standard farm tractor. It is also being utilized by farmers for building or reshaping terraces, as well as, by county highway departments for cleaning roadside ditches. Soil will be scattered 20 to 30 feet at left side of machine.
Features may include
- Operates with 50-140 HP tractor
- Equipped with jack stand for easy hook-up and disconnection
- 15″ 5-paddle impeller contains hard-surfacing and is designed to be resurfaced as it wears
- Dragplate gives machine stability and prevents gouging; includes heavy-duty ratchet jack
- Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
Specifications | |
---|---|
Trim | Base |
Engine Power | Recommended HP Speed: 50-140 HP |
PTO Power, Rated Engine Speed | Power Take-Off: Series 55, 1000 RPM with shear bolt protection |
PTO Type | 1-3/8-21 spline or 1-3/4-20 spline |
Gearbox | 5/16" material with double 80 roller chain, oil bath, external idler tension adjustment |
Hitch/Type | Cat II or III quick hitch |
Impeller Diameter | Wheel: 15" 5-paddle impeller |
Depth, Maximum | Of cut: Up to 10 inches in a single pass and up to 16 inches in multiple passes |
Cutting Width | 15" with standard 5-paddle impeller wheel |
Volume | Of soil moved with 70 HP tractor: Up to 147 cubic yards per hour (2.45 cubic yards per minute) | Of soil moved with 140 HP tractor: Up to 427 cubic yards per hour (7.1 cubic yards per minute) |
Weight, As Shipped | Approximate: 800-1,050 lbs. |
Features | Rear Shoe (dragplate): Includes heavy-duty ratchet jack |
