2008 John Deere 4120
Request a Quote Financing Calculator Request a Brochure Financing Form

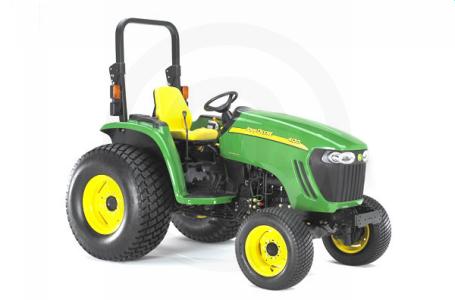

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 4-cylinder John Deere PowerTech™ turbocharged diesel engine
    • 43 horsepower
    • Increased torque provides more power to get the tough jobs done
    • Direct injected for better cold weather starting
    • Common rail fuel system provides more uniform fuel delivery
    • Engine oil cooler provides more efficient heat rejection
    • 75 amp alternator yields additional electrical capacity for accessories
    Performance
    • Sloped hood for improved visibility
    • Standard 4-wheel drive
    • LoadMatch™ feature keeps the tractor from stalling under heavy loads
    • PowrReverser™ transmission or Twin Touch™ eHydro transmission available
    • MotionMatch™ feature enables the operator to customize the tractor's responsiveness
    • Loader ready with a standard dual mid selective control valve and loader joystick
    • Standard rear PTO; optional mid PTO
    • Increased hydraulic implement flow
    • Dual hydraulic pumps ensure a consistent fluid flow for steering and a separate supply to implements
    • Performance Tracking System allows the key tractor systems and functions to be monitored from the driver's seat
    • Digital Speedometer
    • Low fuel warning light
    • Wide-angle halogen lights provide more light and better light dispersion
    Comfort/Convenience
    • Styling and ergonomic design
    • i-Match™ quick hitch
    • Tilt steering allows for easy adjustment and fully raises with a pull of a lever
    • Automotive-style park brake
    • Standard High Back Seat
    • One-piece hood design improves serviceability, there are no sides to have to remove
    Safety
    • Operator Presence System that will shut the tractor off if the operator leaves the seat while the tractor is in gear
    • ASAE and OSHA certified Roll-Over Protection Structure
    Engine
    • Manufacturer: John Deere 4024T
    • Engine HP (kW) - gross: 43 (31.6)
    • PTO HP (kW) - Gear transmission: 37.0 (27.6)
    • PTO HP (kW) - Hydrostatic transmission: 35 (26.1)
    • Rated engine speed, rpm: 2400
    • Type: Diesel
    • Operating range: 950-2600
    • Aspiration: Turbo
    • Cylinders/Displacement, cu. in. (liters): 4 / 148.9 (2.44)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 86x105 (3.39x4.13)
    • Compression Ratio: 20:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry type w/ safety element and air restriction indicator
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 95.0 (128.8)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): Open-14.5 (54.9)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 770
    • Alternator (12 volt, amp): 70 amp
    • Starter Size, hp (kW): 2.2 (2.3)
    Fuel System
    • Type: Direct injection
    • Injection Pump Type: In-line with electric shutoff
    • U.S. gal./hr (L/hr) @ 100% load: 2.46 (9.3)
    Transmission
    • Std. Transmission; Forward/Reverse: PowrReverser; 12F/12R
    • Opt. Transmission; Forward/Reverse: eHydro - 3 range
    • Left-Hand Reverser: Yes / NA
    • On-The-Go Shifting (Yes/No/Partial): Yes / NA
    • Direction Reverser; Forward/Reverse: Yes / NA
    • Final Drive: Planetary
    • Brakes: Wet disk
    • Steering: Power steering
    • Clutch; Wet/Dry: Two wet multi-disk
    • Clutch Disk Diameter, in. (mm) wet clutch: 5.1 (130)
    • Drawbar Tongue Weight Capacity, lb. (kg): 1102 (500)
    • Front, lb. (kg): 3527 (1600) or total combined front tire capacity, whichever is less.
    • Rear, lb. (kg): 5292 (2400)
    • Creeper: No / Optional SpeedMatch
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 17.1 (64.6)
    • Steering: 5.1 (19.3)
    • Implement: 12 (45.3)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2500
    • Draft Control Type: Position Control
    • Remote Control Valves Available: 5
    3-Point Hitch
    • Type: Category I
    • Lift Capacity (24-in. behind link arms), lb. (kg): 2500 (1134)
    • Lift Capacity @ lift link ends, lb. (kg): 3130 (1419)
    Power Take-Off (PTO)
    • Standard: Rear @ 540 RPM
    • Optional: Mid @ 2100 RPM
    • Control: Independent
    • Clutch: Multi-disk, wet
    • Brake (for Mid and Rear PTO): Multi-disk, wet
    Fluid Capacities
    • Fuel Tank, gal. (l): 14.9 (54.9)
    • Cooling system (includes coolant bottle), qt. (l): 6.4 (6.2)
    • Crankcase with filter, qt. (l): 8 (7.5)
    • Transmission and Hydraulic System, gal. (l) gear: 10.3 (38.9)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 9.6 (36.1)
    • Front Axle Gearcase (MFWD axle), gal. (l): 1.3(5)
    Final Drive
    • Type: Planetary
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Foldable
    • Platform - Flat/Straddle: Flat
    • Gear Shift Location - Console/Floor: Left Hand Side
    MFWD Dimensions
    • Wheelbase, in. (mm): 71.5 (1816)
    • Turning Radius w/Brakes, ft. (m): 9.2 (2.8)
    • Turning Radius w/o Brakes, ft. (m): 9.8 (3)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 3700 (1679)
    Standard Tires
    • Front: 8.00-16 R1
    • Rear: 13.6-28 R1
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Inboard Planetary: Yes
    • Axle Type: Flanged
    • Brakes - Type and Control: Wet Disk

    Specifications

    Engine
    Engine Manufacturer John Deere 4024T
    Engine Type 4-Cylinder, Liquid Cooled, Turbo Diesel
    Horsepower 43 hp (31.6 kW)
    PTO HP Gear: 37.0 hp (27.6 kW); Hydrostatic: 35.5 hp (26.1 kW)
    Rated RPM 2400 rpm
    Bore and Stroke 86 x 105 mm (3.39" x 4.13")
    Specifications
    Wheelbase 71.5 in. (1816 mm)
    Weight (Shipping) 3700 lbs. (1679 kg)
    Tire Size Front: 8.00 - 16 R1, Rear: 13.6 - 28 R1
    General
    Fuel System Direct Injection
    Fuel Capacity 14.5 gal. (54.9 l)
    Transmission PowrReverser, 12F/12R
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Planetary

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 4120
    Style Utility
    Engine
    Engine Manufacturer John Deere 4024T
    Engine Type 4-Cylinder, Liquid Cooled, Turbo Diesel
    Horsepower 43 hp (31.6 kW)
    PTO HP Gear: 37.0 hp (27.6 kW); Hydrostatic: 35.5 hp (26.1 kW)
    Rated RPM 2400 rpm
    Bore and Stroke 86 x 105 mm (3.39" x 4.13")
    General
    Fuel System Direct Injection
    Fuel Capacity 14.5 gal. (54.9 l)
    Transmission PowrReverser, 12F/12R
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Planetary
    Specifications
    Wheelbase 71.5 in. (1816 mm)
    Height
    Width
    Weight (Shipping) 3700 lbs. (1679 kg)
    Ground Clearance
    Tire Size Front: 8.00 - 16 R1, Rear: 13.6 - 28 R1
