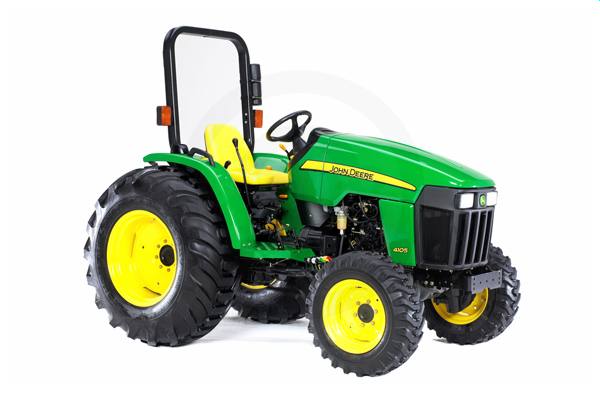

2008 John Deere 4105
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • Yanmar 3-cylinder TNV Series diesel engine (meets the EPA emission standards for Tier II emission requirements)
    • 40.5 horsepower
    Performance
    • Standard 4-wheel drive
    • Independent PTO allows PTO to be engaged and disengaged independent of other transmission operations and at any ground speed
    • Wet disk brakes provide positive stopping power and long life
    • Dual Mid Selective Control valve with integrated joystick
    Comfort/Convenience
    • Twin Touch™ HST pedals are ergonomically designed for efficient and effortless transmission control
    • Adjustable high-back vinyl seat with spring suspension
    • Power steering provides optimum performance in all operating conditions; especially helpful when tractor is equipped with a loader
    • i-Match™ Quick-Hitch
    Safety
    • Operator Presence System that will shut the tractor off if the operator leaves the seat while the tractor is in gear
    • ASAE and OSHA certified Roll-Over Protection Structure
    Versatility
    • Category 1 3-Point Hitch
    • Differential lock increases traction and pulling power
    Engine
    • Manufacturer: Yanmar 3TNV84T-KJT
    • Engine HP (kW) - gross: 40.5 (29.8) @ 2800
    • PTO HP (kW) - Hydrostatic transmission: 32.5 (24.2) @ 2800
    • Rated engine speed, rpm: 2800
    • Type: Diesel
    • Operating range: 1000 - 2975
    • Aspiration: Turbo
    • Cylinders/Displacement, cu. in. (liters): 3 / 91.5 (1.5)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 84x90 (3.3x3.54)
    • Compression Ratio: 19:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type with safety element
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 59.2 (80.3)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): 10.5 (39.7)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 500
    • Alternator (12 volt, amp): 40 amp
    • Starter Size, hp (kW): 1.9 (1.4)
    Fuel System
    • Type: Direct injection
    • Injection Pump Type: In-line with electric shutoff
    • U.S. gal./hr (L/hr) @ 100% load: 2.35 (8.9)
    Transmission
    • Std. Transmission; Forward/Reverse: Hydro, 2-Range
    • Left-Hand Reverser: No
    • On-The-Go Shifting (Yes/No/Partial): No
    • Direction Reverser; Forward/Reverse: Yes; Twin Touch Pedals
    • Final Drive: Spur gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Drawbar Tongue Weight Capacity, lb. (kg): 882 (400)
    • Front, lb. (kg): 1587-3197 (720-1450)
    • Rear, lb. (kg): 4000 (1815)
    • Creeper: No
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 14.8 (56.2)
    • Steering: 5.7 (21.6)
    • Implement: 9.2 (34.7)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2500
    • Draft Control Type: Position control
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Category 1
    • Lift Capacity (24-in. behind link arms), lb. (kg): 2200 (999)
    • Lift Capacity @ lift link ends, lb. (kg): 2530 (1149)
    Power Take-Off (PTO)
    • Standard: Rear @ 540
    • Control: Independent
    • Clutch: Wet disk
    Fluid Capacities
    • Fuel Tank, gal. (l): 10.5 (39.7)
    • Cooling system (includes coolant bottle), qt. (l): 5.6 (5.3)
    • Crankcase with filter, qt. (l): 4.5 (4.3)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 6.8 (25.7)
    • Front Axle Gearcase (MFWD axle), gal. (l): 1.2 (4.5)
    Final Drive
    • Type: Spur Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: ASAE S478
    • Rigid - Foldable - Telescopic: Rigid
    • Platform - Flat/Straddle: Semi-flat
    • Gear Shift Location - Console/Floor: Left Side
    MFWD Dimensions
    • Wheelbase, in. (mm): 68 (1727)
    • Front Tread Range, in. (mm): 51.2 (1300)
    • Front Axle Clearance, in. (mm): 14.7 (373)
    • Turning Radius w/o Brakes, ft. (m): 9.5 (2.89)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 2987 (1355)
    Standard Tires
    • MFWD Front: 10-16.5 R4 / 8-16 R1
    • MFWD Rear: 17.5L-24 R4 / 14.9-24 R1
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Brakes - Type and Control: Wet disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV84T-KJT
    Engine Type 3-Cylinder, Liquid Cooled, Turbo, Diesel
    Horsepower 40.5 hp (29.8 kW)
    PTO HP 32.5 hp (24.2 kW)
    Rated RPM 2800 rpm
    Bore and Stroke 84 x 90 (3.3" x 3.54")
    Specifications
    Wheelbase 68 in. (1727 mm)
    Weight (Shipping) 2987 lbs. (1355 kg)
    Ground Clearance 14.7 in. (373 mm)
    Tire Size Front: 10 - 16.5 R4 or 8 - 16 R1, Rear: 17.5L - 24 R4 or 14.9 - 24 R1
    General
    Fuel System Direct Injection
    Fuel Capacity 10.5 gal. (39.7 l)
    Transmission Hydrostatic, 2-Range
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Spur Gear

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 4105
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV84T-KJT
    Engine Type 3-Cylinder, Liquid Cooled, Turbo, Diesel
    Horsepower 40.5 hp (29.8 kW)
    PTO HP 32.5 hp (24.2 kW)
    Rated RPM 2800 rpm
    Bore and Stroke 84 x 90 (3.3" x 3.54")
    General
    Fuel System Direct Injection
    Fuel Capacity 10.5 gal. (39.7 l)
    Transmission Hydrostatic, 2-Range
    Brakes Wet Disk
    Hydraulics Open Center, 2500 Max psi
    Drive Type Spur Gear
    Specifications
    Wheelbase 68 in. (1727 mm)
    Height
    Width
    Weight (Shipping) 2987 lbs. (1355 kg)
    Ground Clearance 14.7 in. (373 mm)
    Tire Size Front: 10 - 16.5 R4 or 8 - 16 R1, Rear: 17.5L - 24 R4 or 14.9 - 24 R1
