2008 John Deere 5103
Request a Quote Financing Calculator Request a Brochure Financing Form

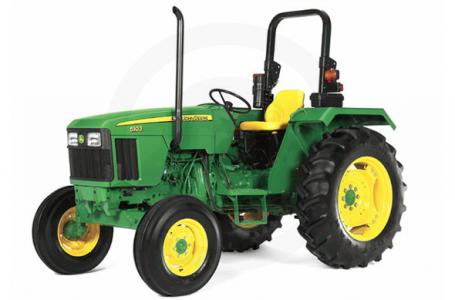

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Mechanical Front Wheel Drive increases traction in tough conditions
    • Easy shifting with the SyncReverser™ and SyncShuttle™ transmissions
    • Find versatility with a variety of hydraulic offerings
    • Adapt to a wide variety of implements with the 5003 Series 3-point hitch
    • Spacious straddle mount operator station
    • High-torque, low-emission turbocharged diesel engines
    Differentials, axles, frame and chassis
    • Heavy-duty two-wheel-drive (2WD) front axles are ready to work
    • Mechanical Front Wheel Drive increases traction in tough conditions
    • Differential lock for better traction
    • Inboard planetary final drives reduce stress on gears and shafts
    • Matched wheelbase provides a nimble tractor
    Electrical and lighting
    • Full lighting equipment
    Engine
    • John Deere PowerTech™ 3-cylinder diesel engines
    • High-torque, low-emission turbocharged diesel engines
    Hitch, drawbar and PTO
    • Adapt to a wide variety of implements with the 5003 Series 3-point hitch
    • Top link draft sensing provides consistent results every time
    • Standard independent 540 rpm rear power take-off (PTO) performs well in normal or heavy applications
    Hydraulics
    • Open-center hydraulic system
    • Hydraulic capacities
    • Find versatility with a variety of hydraulic offerings
    Operator's station and controls
    • Spacious straddle mount operator station
    • Easy to operate controls and instrumentation
    • 2-post foldable Roll-Gard™ ROPS
    Serviceability and support
    • Easy-access service points
    Steering and brakes
    • Hydrostatic power steering for performance and efficiency
    • Wet-disk brakes provide durability and long life
    Transmissions
    • Achieve results with a SyncReverser™ transmission
    • SyncShuttle™ transmission is an ideal and durable transmission
    • Economical and durable clutch
    Official Test
    • Nebraska Test Number: Nebr. OECD 1870 (March 2006)
    Engine Specifications
    • Manufacturer: John Deere
    • Aspiration: Turbocharged
    • Cylinders/Displacement: 3 Cylinders/179 cu. in. (2.9 l)
    • Cylinder Liners: Wet
    • Fuel Tank Cap.: 19.0 gal. (72.0 l)
    • Underhood muffler: Yes
    Fuel Use, U.S. gal./hr. & HP hr./gal. at:
    • PTO @ Rated Eng RPM: 2.94 gal./hr. & 14.87 hp hr./gal. @ 2399 rpm
    • Maximum PTO Power @ Eng RPM: 2.85 gal./hr. & 16.32 hp hr./gal. @ 2150 rpm
    • Maximum Engine Power @ Eng RPM: 2.94 gal./hr. & 14.87 hp hr./gal. @ 2399 rpm
    Transmission
    • Std. Transmission; Forward/Reverse: 9F/3R SyncReverser
    • Opt. Transmission; Forward/Reverse: 9/3 SyncShuttle
    • Reverser: No
    • On-the-Go Shifting: Partial (Yes Opt.)
    • Clutch: Dry
    Power Take-Off (PTO)
    • Standard: Independent 540
    • PTO Actuation: Mechanical (lever)
    Final Drive
    • Type: Planetary
    • Differential Controls: Mechanical (Pedal)
    • Engage On-the-Go Rear Differential Lock: Yes
    • Axle Type: Flanged
    • Brakes, Type and Control: Mechanical Wet Disc
    Operator Station
    • Rollover Protective Structure, OOS: Foldable, 2-Post
    • Platform: Straddle
    • Gearshift Location: Floor
    2WD Dimensions
    • Wheelbase: 80.7 in. (2,050 mm)
    • Front Tread Range: 56.9 - 81.9 in. (1,447 - 2,082 mm)
    • Rear Tread Range: 55.8 - 71.7 in. (1,417 - 1,821 mm)
    • Minimum Rear Tread Setting: 55.8 in. (1,417 mm)
    • Front Axle Clearance: 18.0 in. (457 mm)
    • Turning Radius w/Brakes: 10.4 ft. (3.18 m)
    • Turning Radius w/o Brakes: 11.5 ft. (3.50 m)
    • Approx. Ship Wgt: 4,634 lbs. (2,102 kg)
    MFWD Dimensions
    • Wheelbase: 80.7 in. (2,050 mm)
    4WD Dimensions
    • Unballasted Weight: 5,031 lbs. (2,282 kg)
    Standard Tires
    • 2WD: Front - 7.5 - 16; Rear - 13.6 - 28
    • MFWD: Front - 8.3 - 24; Rear - 13.6 - 28
    Miscellaneous
    • Country of Manufacture: Pune, India
    Performance
    • Advertised PTO HP @ Rated RPM: 38 hp (28.34 kW) @ 2400 rpm
    • Advertised Engine HP @ Rated Speed: 45 hp (33.56 kW) @ 2400 rpm
    Hydraulics Specifications
    • Type: Open Center
    • Pump Rated Output: 18.2 gpm (68.8 l/min)
    • Hitch Draft Control Load Sense Type: Mechanical
    • Remote Control Valves Available: 1 (2 opt.)
    • Hitch Category (SAE Designation): 2/1
    • Hitch Lift Cap. @24"Bhnd Lift Pt.: 3,591 lbs. (1,629 kg)
    • Sensing Type: Top Link
    • Joystick SCV Control: Optional

    Specifications

    Engine
    Engine Manufacturer John Deere
    Engine Type Aspiration: Turbocharged; Cylinders/Displacement: 3/179 cu. in. (2.9 l)
    Horsepower 45 hp (33.56 kw)
    PTO HP 38 hp (28.34 kw) @ 2400
    Rated RPM 2400
    Specifications
    Wheelbase 80.7 in. (2,050 mm)
    Weight 2WD: 4,634 lbs. (2,102 kg); 4WD: 5,031 lbs. (2,282 kg)
    Ground Clearance 2WD front axle: 18.0 in. (457 mm)
    Tire Size 2WD Front: 7.5 - 16; 2WD Rear: 13.6 - 28; MFWD Front: 8.3 - 24; MFWD Rear: 13.6 - 28
    General
    Fuel Capacity 19.0 gal.(72.0 l)
    Transmission Std.: 9F/3R SyncReverser; Opt.: 9/3 SyncShuttle
    Brakes Mechanical Wet Disc
    Hydraulics Open Center
    Drive Type Planetary

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 5103
    Style Utility
    Engine
    Engine Manufacturer John Deere
    Engine Type Aspiration: Turbocharged; Cylinders/Displacement: 3/179 cu. in. (2.9 l)
    Horsepower 45 hp (33.56 kw)
    PTO HP 38 hp (28.34 kw) @ 2400
    Rated RPM 2400
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 19.0 gal.(72.0 l)
    Transmission Std.: 9F/3R SyncReverser; Opt.: 9/3 SyncShuttle
    Brakes Mechanical Wet Disc
    Hydraulics Open Center
    Drive Type Planetary
    Specifications
    Wheelbase 80.7 in. (2,050 mm)
    Height
    Width
    Weight 2WD: 4,634 lbs. (2,102 kg); 4WD: 5,031 lbs. (2,282 kg)
    Ground Clearance 2WD front axle: 18.0 in. (457 mm)
    Tire Size 2WD Front: 7.5 - 16; 2WD Rear: 13.6 - 28; MFWD Front: 8.3 - 24; MFWD Rear: 13.6 - 28
