2008 John Deere 4005
Request a Quote Financing Calculator Request a Brochure Financing Form

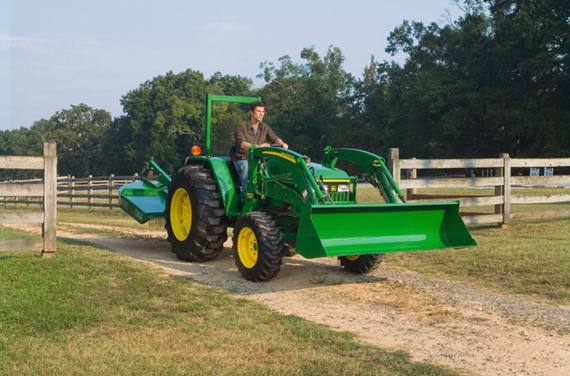

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 41.5 hp, 4-cylinder, low-emission diesel engine is designed for outstanding performance, durability and the best operating experience
    Performance
    • Standard power steering makes steering easier and quicker when maneuvering tractor and is especially valuable when mowing around obstacles and using a front loader
    • Individual pedals allow independent operation of right and left brakes and help make shorter turns. The pedals can be locked together during transport for positive straight-line stops
    • Standard differential lock can be engaged on-the-go for greater productivity; optional 4-wheel drive is available for extra traction and pulling power
    • To deliver power to rear implements, the tractor features a continuous live 540-rpm rear power take-off (PTO); this rotating shaft provides power to implements such as rotary cutters, rotary tillers and more
    • Tractor features an open center hydraulic system; dual hydraulic gear pumps on models with power steering are driven off the engine crankshaft and provide high-capacity output for various hydraulic applications
    • Equipped with a gear transmission with 9 forward and 3 reverse speeds
    Comfort/Convenience
    • Operator's station is designed for easy entry to/exit from the tractor; left-side step and handrails assist you in getting on and off the tractor
    • A high-backed seat offers good back support for comfortable operation; seat is adjustable both fore and aft; seat flips forward for protection from the elements
    • Easy-to-read instrument panel includes tach/hourmeter, electric fuel gauge, oil pressure indicator light, alternator indicator light, coolant temperature gauge, and warning lights
    Safety
    • Seat belt and seat belt holders are standard
    • Operator presence system (OPS) ensures the engine and transmission will shut down if you leave the seat when the tractor is in motion
    • PTO presence system ensures the engine, transmission, and PTO will shut down if you leave the seat when the transmission, mid or rear PTO is engaged (unless you are using the stationary PTO switch)
    • Standard two-post Roll-Gard ROPS roll-over protective structure protects you in the event of a tractor tip-over
    Engine
    • Manufacturer: Yanmar 4TNV84
    • Engine HP (kW) - gross: 41.5 (30.5)
    • PTO HP (kW) - Gear transmission: 35 (26.1)
    • Rated engine speed, rpm: 2700
    • Type: Diesel
    • Operating range: 925-2920
    • Aspiration: Natural
    • Cylinders/Displacement, cu. in. (liters): 4 / 121.7 (2.0)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 84x90 (3.31x3.54)
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type with safety element
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 74.8 (101.4)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): 8.5 (32)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 650
    • Alternator (12 volt, amp): 40
    • Starter Size, hp (kW): 2.7 (2.0)
    Fuel System
    • Type: Direct Injection
    • Injection Pump Type: In-line with electric shutoff
    Transmission
    • Std. Transmission; Forward/Reverse: Collar Shift; 9F/3R
    • Left-Hand Reverser: No
    • On-The-Go Shifting (Yes/No/Partial): Partial
    • Direction Reverser; Forward/Reverse: No
    • Final Drive: Planetary
    • Brakes: Wet disk
    • Steering: Power steering
    • Clutch; Wet/Dry: Dry
    • Clutch Disk Diameter, in. (mm) wet clutch: 8.9 (225 mm)
    • Drawbar Tongue Weight Capacity, lb. (kg): 825 (374)
    • Front, lb. (kg): 2010 (912)
    • Rear, lb. (kg): 3224 (1463)
    • Creeper: No
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 13 (49.2)
    • Steering: 4.5 (17.0)
    • Implement: 8.5 (32.2)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2262
    • Draft Control Type: Position
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Category 1
    • Lift Capacity (24-in. behind link arms), lb. (kg): 2020 (916.3)
    Power Take-Off (PTO)
    • Standard: Rear @ 540
    • Control: Continuous live
    • Clutch: Dry disk
    Fluid Capacities
    • Fuel Tank, gal. (l): 8.5 (32)
    • Cooling system (includes coolant bottle), qt. (l): 6.1 (5.8)
    • Crankcase with filter, qt. (l): 5.6 (5.3)
    • Transmission and Hydraulic System, gal. (l) gear: 5.5 (21)
    • Front Axle Gearcase (MFWD axle), gal. (l): .55 (2.1)
    Final Drive
    • Type: Planetary
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Rigid
    • Platform - Flat/Straddle: Straddle
    • Gear Shift Location - Console/Floor: Floor/Trans. Housing
    2WD Dimensions
    • Wheelbase, in. (mm): 69 (1750)
    • Turning Radius w/Brakes, ft. (m): 8.9 (2.7)
    • Turning Radius w/o Brakes, ft. (m): 9.2 (2.8)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 2954 (1340)
    MFWD Dimensions
    • Turning Radius w/Brakes, ft. (m): 8.9 (2.7)
    • Turning Radius w/o Brakes, ft. (m): 9.2 (2.8)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 3175 (1440)
    Standard Tires
    • 2WD Front: 6.5-16 F2
    • 2WD Rear: 14.9-24 R1
    • MFWD Front: 8 - 16 R1
    • MFWD Rear: 14.9-24 R1
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Inboard Planetary: No
    • Axle Type: Flanged
    • Brakes - Type and Control: Wet Disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 4TNV84
    Engine Type 4-Cylinder, Liquid Cooled, Diesel
    Horsepower 41.5 hp (30.5 kW)
    PTO HP 35 hp (26.1 kW)
    Rated RPM 2700 rpm
    Specifications
    Wheelbase 69 in. (1750 mm)
    Weight (Shipping) 2WD: 2954 lbs. (1340 kg); MFWD: 3175 lbs. (1440 kg)
    Tire Size Front: (2WD) 6.5 - 16 F2, (MFWD) 8 - 16 R1, Rear: (2WD) 14.9 - 24 R1, (MFWD) 14.9 - 24 R1
    General
    Fuel System Direct Injection
    Fuel Capacity 8.5 gal. (32 l)
    Transmission Collar Shift, 9F/3R
    Brakes Wet Disk
    Hydraulics Open Center, 2262 Max psi
    Drive Type Planetary

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 4005
    Style Utility
    Engine
    Engine Manufacturer Yanmar 4TNV84
    Engine Type 4-Cylinder, Liquid Cooled, Diesel
    Horsepower 41.5 hp (30.5 kW)
    PTO HP 35 hp (26.1 kW)
    Rated RPM 2700 rpm
    Bore and Stroke
    General
    Fuel System Direct Injection
    Fuel Capacity 8.5 gal. (32 l)
    Transmission Collar Shift, 9F/3R
    Brakes Wet Disk
    Hydraulics Open Center, 2262 Max psi
    Drive Type Planetary
    Specifications
    Wheelbase 69 in. (1750 mm)
    Height
    Width
    Weight (Shipping) 2WD: 2954 lbs. (1340 kg); MFWD: 3175 lbs. (1440 kg)
    Ground Clearance
    Tire Size Front: (2WD) 6.5 - 16 F2, (MFWD) 8 - 16 R1, Rear: (2WD) 14.9 - 24 R1, (MFWD) 14.9 - 24 R1
