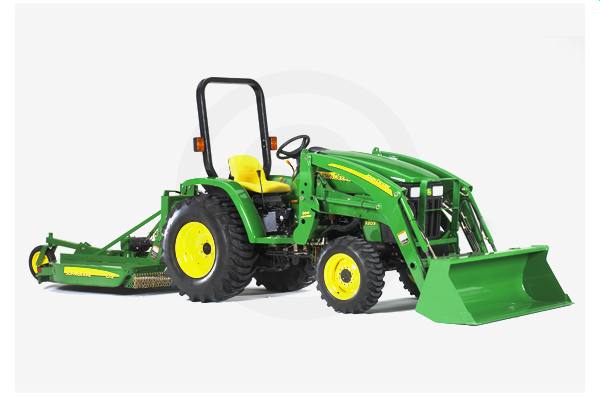

2008 John Deere 3203
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 32 horsepower
    • Yanmar 3-cylinder TNV Series diesel engine (meets the EPA emission standards for Tier II emission requirements)
    Performance
    • Standard 4-wheel drive
    • Independent PTO allows PTO to be engaged and disengaged independent of other transmission operations and at any ground speed
    • Wet disk brakes provide positive stopping power and long life
    Comfort
    • Power steering provides optimum performance in all operating conditions; especially helpful when tractor is equipped with a loader
    • Contoured, comfortable seat
    • Twin Touch™ HST pedals are ergonomically designed for efficient and effortless transmission control
    Safety
    • Roll-Gard™ ROPS and seat belt increase operator safety
    Versatility
    • Category 1 3-Point Hitch
    • Differential lock increases traction and pulling power
    Engine
    • Manufacturer: Yanmar 3TNV84
    • Engine HP (kW) - gross: 32 (23.9) @ 2800
    • PTO HP (kW) - Hydrostatic transmission: 24 (17.9) @ 2800
    • Rated engine speed, rpm: 2800
    • Type: Diesel
    • Operating range: 950 (2800)
    • Aspiration: Natural
    • Cylinders/Displacement, cu. in. (liters): 3 / 91.5 (1.5)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 84x90 (3.3x3.54)
    • Compression Ratio: 19:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type with safety element
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 55.6 (75.4)
    • Fuel Tank Cap., US Gal. (L) (Open; Cab): 11.5 (43.5)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 500
    • Alternator (12 volt, amp): 75 amp
    • Starter Size, hp (kW): 1.6 (1.2)
    Fuel System
    • Type: Direct injection
    • Injection Pump Type: In-line with electric shutoff
    • U.S. gal./hr (L/hr) @ 100% load: 2.1 (7.8)
    Transmission
    • Std. Transmission; Forward/Reverse: Hydro, 2-Range
    • Left-Hand Reverser: No
    • On-The-Go Shifting (Yes/No/Partial): No
    • Direction Reverser; Forward/Reverse: Yes; Twin Touch Pedals
    • Final Drive: Spur gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Drawbar Tongue Weight Capacity, lb. (kg): 882 (400)
    • Front, lb. (kg): 1587-3197 (720-1450)
    • Rear, lb. (kg): 4000 (1815)
    • Creeper: No
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 13.3 (50.4)
    • Steering: 5.7 (21.6)
    • Implement: 7.6 (28.8)
    • Pump Type: Dual gear
    • Maximum Operating Pressure (PSI): 2150
    • Draft Control Type: Position control
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Category 1
    • Lift Capacity (24-in. behind link arms), lb. (kg): 1868 (849)
    • Lift Capacity @ lift link ends, lb. (kg): 2149 (977)
    Power Take-Off (PTO)
    • Standard: Rear @ 540
    • Control: Independent
    • Clutch: Multi-disk, wet
    • Brake (for Mid and Rear PTO): Multi-disk, wet
    Fluid Capacities
    • Fuel Tank, gal. (l): 11.5 (43.5)
    • Cooling system (includes coolant bottle), qt. (l): 5.6 (5.3)
    • Crankcase with filter, qt. (l): 4.5 (4.3)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 6.8 (25.7)
    • Front Axle Gearcase (MFWD axle), gal. (l): 1.2 (4.5)
    Final Drive
    • Type: Spur Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: ASAE S478
    • Rigid - Foldable - Telescopic: Rigid
    • Platform - Flat/Straddle: Semi-flat
    • Gear Shift Location - Console/Floor: Left Side
    MFWD Dimensions
    • Wheelbase, in. (mm): 68 (1727)
    • Front Tread Range, in. (mm): 45.9 (1166) - 52.5 (1334)
    • Front Axle Clearance, in. (mm): 12.2 (309)
    • Turning Radius w/Brakes, ft. (m): 8.8 (2.68)
    • Turning Radius w/o Brakes, ft. (m): 9.2 (2.8)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 2700 (1225)
    Standard Tires
    • MFWD Front: 25x8.50-14 R4
    • MFWD Rear: 15-19.5 R4
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Brakes - Type and Control: Wet disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV84
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 32 hp (23.9 kW)
    PTO HP 24 hp (17.9 kW)
    Rated RPM 2800 rpm
    Bore and Stroke 84 x 90 mm (3.3" x 3.54")
    Specifications
    Wheelbase 68 in. (1727 mm)
    Weight Shipping 2700 lbs. (1225 kg)
    Ground Clearance 12.2 in. (309 mm)
    Tire Size Front: 25 x 8.50 - 14 R4, Rear: 15 - 19.5 R4
    General
    Fuel System Direct Injection
    Fuel Capacity 11.5 gal. (43.5 l)
    Transmission Hydrostatic, 2 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2150 Max psi
    Drive Type Spur Gear

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 3203
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV84
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 32 hp (23.9 kW)
    PTO HP 24 hp (17.9 kW)
    Rated RPM 2800 rpm
    Bore and Stroke 84 x 90 mm (3.3" x 3.54")
    General
    Fuel System Direct Injection
    Fuel Capacity 11.5 gal. (43.5 l)
    Transmission Hydrostatic, 2 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2150 Max psi
    Drive Type Spur Gear
    Specifications
    Wheelbase 68 in. (1727 mm)
    Height
    Width
    Weight Shipping 2700 lbs. (1225 kg)
    Ground Clearance 12.2 in. (309 mm)
    Tire Size Front: 25 x 8.50 - 14 R4, Rear: 15 - 19.5 R4
