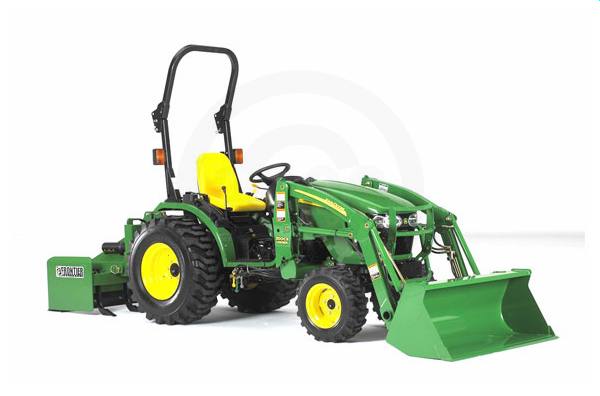

2008 John Deere 2520 4WD
Request a Quote Financing Calculator Request a Brochure Financing Form

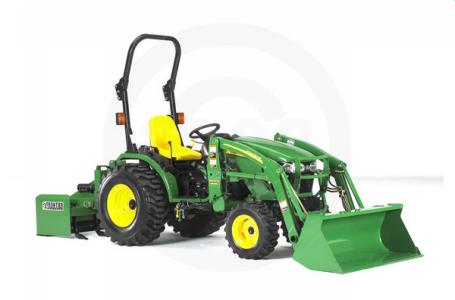

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 3-Cylinder Yanmar diesel engine
    • 26.5 horsepower
    • Differential lock increases traction and pulling power
    Performance
    • Hydrostatic transmission (HST) provides infinite speed selection without clutching or shifting required for direction changes
    • Independent mid and rear PTOs
    • Standard 4-wheel drive
    Comfort
    • Power steering provides optimum performance in all operating conditions, especially when tractor is equipped with a loader
    • Patented, ergonomic Twin Touch™ two-pedal foot control
    • Cruise control is standard equipment
    • High-backed contoured seat is suspended for added operator comfort
    Reliability
    • Auto-bleed fuel system - if tractor runs dry, just refuel and restart
    • Wet-disk brakes
    Safety
    • Roll-Gard™ ROPS and seat belt ensure operator safety
    • Operator presence system
    Versatility
    • Category 1 3-Point Hitch
    • Optional iMatch™ Quick Hitch
    Engine
    • Manufacturer: Yanmar 3TNV82A
    • Engine HP (kW) - gross: 26.4 (19.4)
    • PTO HP (kW) - Hydrostatic transmission: 20.5 (15.3)
    • Rated engine speed, rpm: 2600
    • Type: Direct injection
    • Operating range: 1000-2750
    • Aspiration: Natural
    • Cylinders/Displacement, cu. in. (liters): 3 / 81.2 (1.33)
    • Cylinder Liners: Cast-in-block
    • Bore and Stroke, mm (in.): 82x84 (3.23x3.31)
    • Compression Ratio: 19.2:1
    • Lubrication: Pressurized
    • Cooling System: Water pump
    • Air Cleaner: Dry-type, two stage
    • Engine Shutoff: Key switch
    • Engine Torque @ rated speed, ft./lb. (N/m): 51.3 (69.6)
    • Fuel Tank Cap., US Gal. (L): 7.1 (27)
    Electrical
    • Type: 12 volt
    • Battery Size (CCA): 500
    • Alternator (12 volt, amp): 40
    • Starter Size, hp (kW): 1.6 (1.2)
    Fuel System
    • Type: Diesel
    • Injection Pump Type: Gear
    • U.S. gal./hr (L/hr) @ 100% load: 1.6 (6.2)
    Transmission
    • Std. Transmission; Forward/Reverse: Hydro - 2 Range
    • Direction Reverser; Forward/Reverse: Twin Touch pedals
    • Final Drive: Spur gear
    • Brakes: Wet disk
    • Steering: Power steering
    • Drawbar Tongue Weight Capacity, lb. (kg): 562 (255)
    • Front, lb. (kg): 1940 (880)
    • Rear, lb. (kg): 2426 (1100)
    Hydraulics
    • Type: Open Center
    • Pump Rated Output, gpm (L/min.): 10.5 (39.6)
    • Steering: 5.5 (20.8)
    • Implement: 5.0 (18.8)
    • Pump Type: Gear
    • Maximum Operating Pressure (PSI): 2418
    • Draft Control Type: Position Control
    • Remote Control Valves Available: 2
    3-Point Hitch
    • Type: Category I
    • Lift Capacity (24-in. behind link arms), lb. (kg): 1250 (567)
    • Lift Capacity @ lift link ends, lb. (kg): 1433 (650)
    Power Take-Off (PTO)
    • Standard: Standard Rear @ 540 RPM and Mid @ 2100 RPM std.
    • Control: Independent
    • Clutch: Wet disk
    • Brake (for Mid and Rear PTO): Wet disk
    Fluid Capacities
    • Fuel Tank, gal. (l): 7.1 (27)
    • Cooling system (includes coolant bottle), qt. (l): 4.1 (3.9)
    • Crankcase with filter, qt. (l): 3.0 (2.8)
    • Transmission and Hydraulic System, gal. (l) hydrostatic: 3.9 (14.6)
    • Front Axle Gearcase (MFWD axle), gal. (l): 3.6 (3.4)
    Final Drive
    • Type: Spur Gear
    • Engage On-the-Go Rear Differential Lock: Yes
    Operator Station
    • Rollover Protective Structure: OSHA, SAE, ASAE
    • Rigid - Foldable - Telescopic: Foldable
    • Platform - Flat/Straddle: Flat
    • Gear Shift Location - Console/Floor: Left-Hand-Side
    MFWD Dimensions
    • Wheelbase, in. (mm): 65.2 (1655)
    • Front Tread Range, in. (mm): 32.7 (830)
    • Front Axle Clearance, in. (mm): 12.5 (318.4)
    • Turning Radius w/Brakes, ft. (m): 7.5 (2.3)
    • Turning Radius w/o Brakes, ft. (m): 8.2 (2.5)
    • Approx. Ship Wgt, lb. (kg) Open; Cab: 1865 (846)
    Standard Tires
    • MFWD Front: 23x8.5-12 R4
    • MFWD Rear: 36x14.00-17.5 R4
    Miscellaneous
    • Underhood Muffler: Yes
    • Joystick SCV Control: Yes
    • Inboard Planetary: No
    • Axle Type: Flanged
    • Brakes - Type and Control: Wet Disk

    Specifications

    Engine
    Engine Manufacturer Yanmar 3TNV82A
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 26.4 hp (19.4 kW)
    PTO HP 20.5 hp (15.3 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 82 x 84 mm (3.23" x 3.31")
    Specifications
    Wheelbase 65.2 in. (1655 mm)
    Weight 1865 lbs. (746 kg) Shipping Weight
    Ground Clearance 12.5 in. (318.4 mm)
    Tire Size Front: 23 x 8.5 - 12 R4, Rear: 36 x 14.00 - 17.5 R4
    General
    Fuel System Direct Injection
    Fuel Capacity 7.1 gal. (27 l)
    Transmission Hydrostatic - 2 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2418 Max psi
    Drive Type Spur Gear

    Compare Models

    		 Print








    Year 2008
    Manufacturer John Deere
    Model 2520 4WD
    Style Utility
    Engine
    Engine Manufacturer Yanmar 3TNV82A
    Engine Type 3-Cylinder, Liquid Cooled, Diesel
    Horsepower 26.4 hp (19.4 kW)
    PTO HP 20.5 hp (15.3 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 82 x 84 mm (3.23" x 3.31")
    General
    Fuel System Direct Injection
    Fuel Capacity 7.1 gal. (27 l)
    Transmission Hydrostatic - 2 Range
    Brakes Wet Disk
    Hydraulics Open Center, 2418 Max psi
    Drive Type Spur Gear
    Specifications
    Wheelbase 65.2 in. (1655 mm)
    Height
    Width
    Weight 1865 lbs. (746 kg) Shipping Weight
    Ground Clearance 12.5 in. (318.4 mm)
    Tire Size Front: 23 x 8.5 - 12 R4, Rear: 36 x 14.00 - 17.5 R4
